Hastelloy C276 Wire Mesh W.Nr.2.4819 UNS N10276 Nickel Alloy Soft Magnetic Wire

  • 1
  • 2
  • 3

Brand Name : TSING SHAN

Model Number : W.Nr.2.4819 UNS N10276

Certification : ISO SGS MTC

Place of Origin : China

MOQ : 100KGS

Price : 41.5 USD/KG

Payment Terms : L/C, T/T

Supply Ability : 50000KGS

Delivery Time : 7 Days

Packaging Details : Export Packing

Applications : Chemical processing, aerospace, marine, nuclear, oil and gas

Spec : ASTM 581, ASTM B 582

Strength : High tensile strength

Corrosion Resistance : Excellent

Weldability : Good

Heat Resistance : High

Screw Type : Hastelloy single screw barrel

Form Of Supply : Forging, rod, round bar, tube, strip

Brand No : HASTELLOY C-4 /din 2.4610

Tensile Strength Rm : 690 N/mm²

Price Term : Ex-Work,FOB,CNF,CFR,CIF,FCA,DDP,DDU

Product Type : Bar, tube, plate, strip, etc

Chemical Position : nicrmo

Shape : Wire, Strip, Rod, Pipe, Plate

Product : Hastelloy C-276 / N10276 Seamless Pipe

Contact Now

Hastelloy C276 Wire W.Nr.2.4819 UNS N10276 Nickel Alloy Wire for Spring and Wire Mesh

Product name
Hastelloy C-276(UNS N10276/W.Nr.2.4819/NS336)
MOQ
1piece
Nickel content
58%
Material
nickel alloy
country of origin
Jiangsu
density
8.9m³
Elongation
43%
Standard
ASTM/ASME
Price terms
FOB EXW CIF CFR
Name
Hastelloy C-276(UNS N10276/W.Nr.2.4819/NS336)
Nickel
Hastelloy
C276
Chemical
Compsition
Wt.%
Ni
balance
balance
Cr
min.14.5
max.16.5
min.14.5
max.16.5
Mo
min.15
max.17
min.15
max.17
Fe
min.4
max.7
min.4
max.7
W
min.3
max.4.5
max.3
max.4.5
Co
min.-
max.2.5
max.-
max.2.5
C
min.-
max.0.08
max.-
max.0.01
Mn
min.-
max.1
max.-
max.1
Si
min.-
max.1
max.-
max.0.08
V
min.-
max0.35
max.-
max.0.35
P
min.-
max.0.04
max.-
max.0.04
S
min.-
max.0.03
max.-
max.0.03

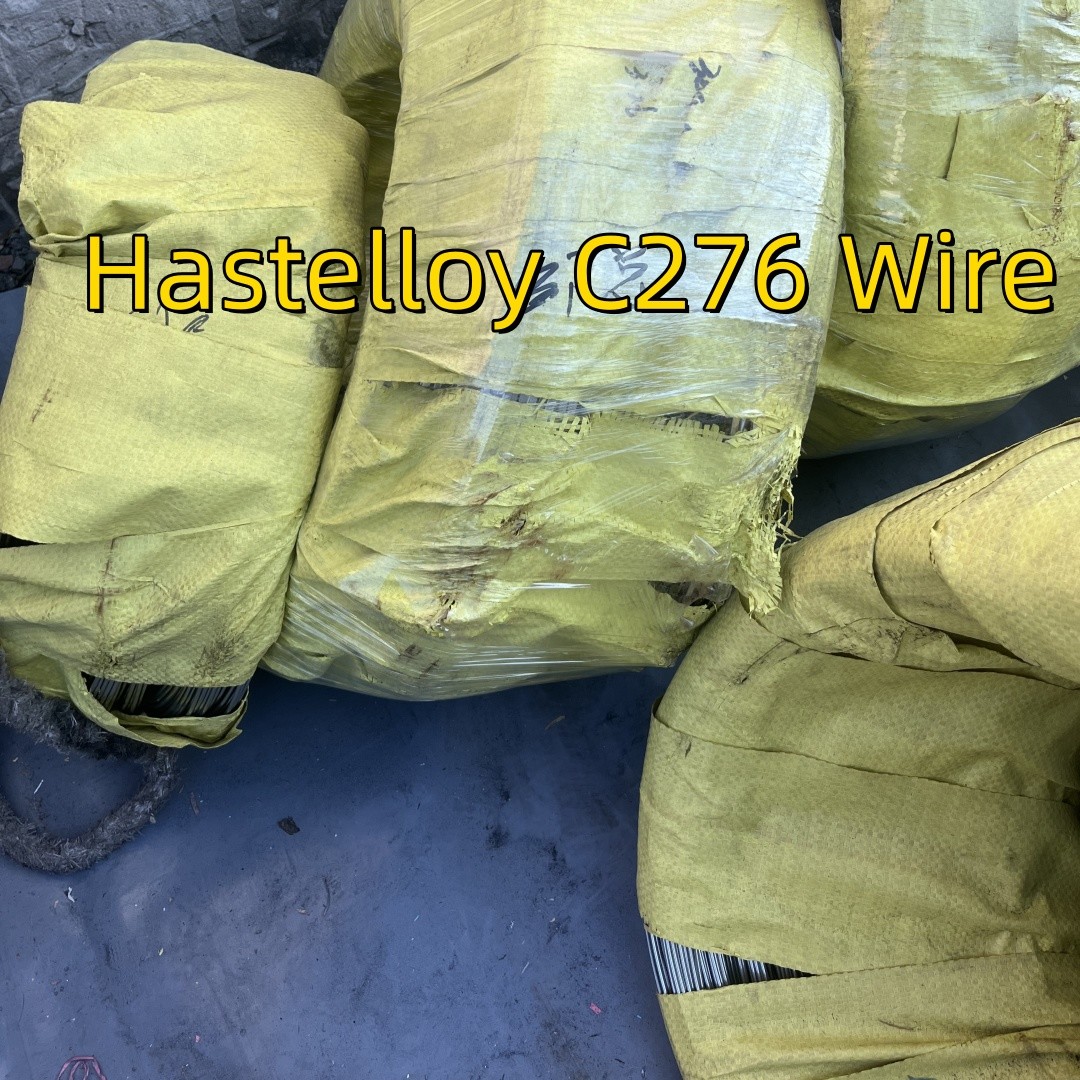

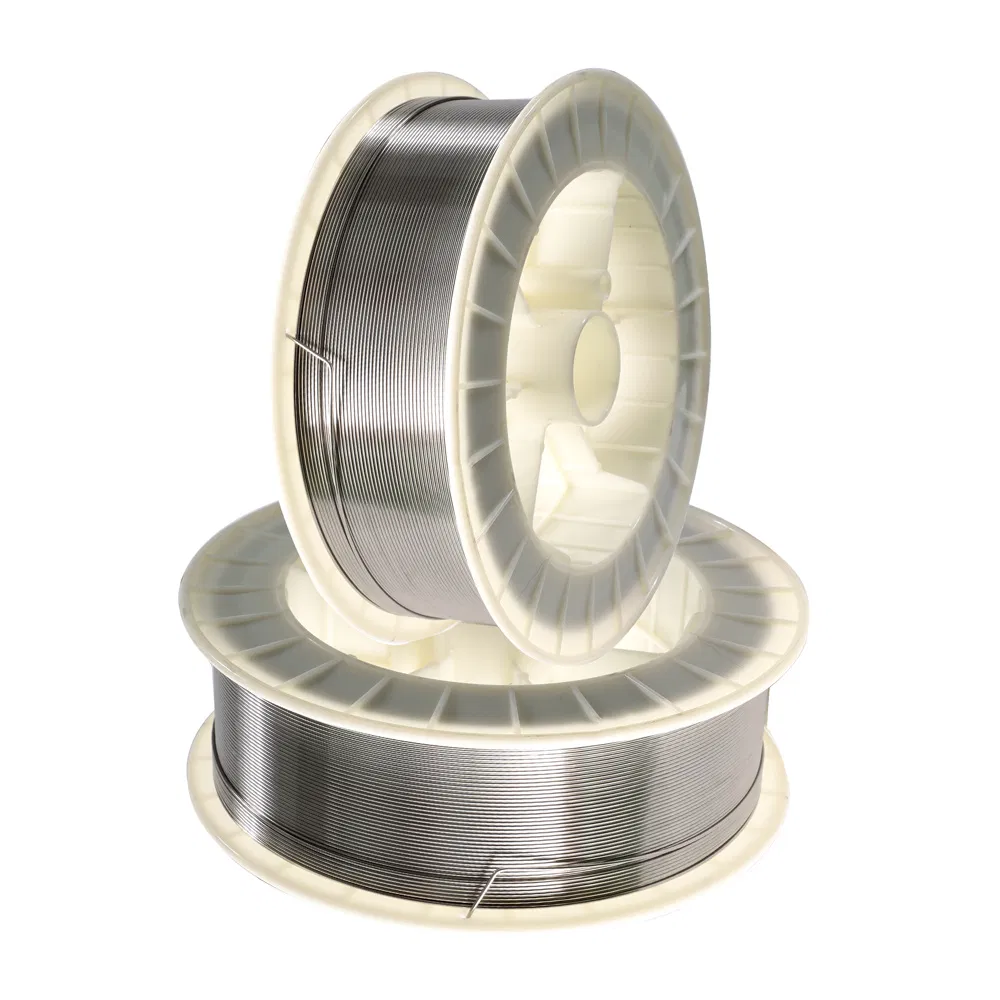

Detailed Photos

Hastelloy C276 Wire Mesh W.Nr.2.4819 UNS N10276 Nickel Alloy Soft Magnetic Wire

Hastelloy C276 Wire Mesh W.Nr.2.4819 UNS N10276 Nickel Alloy Soft Magnetic Wire

Hastelloy C276 Wire Mesh W.Nr.2.4819 UNS N10276 Nickel Alloy Soft Magnetic Wire

Characteristic as below
1.Excellent corrosion resistance to most of corrosion media in oxidation and reduction environments.
2.Excellent resist pitting, crevice corrosion and stress corrosion cracking performance.

Hastelloy C-276 Metallurgical structure
C276 is face-centered cubic lattice structure.

Hastelloy C-276 Corrosion resistance
C276 alloy suit for many kinds of chemical process industry which contain the oxidizing medium and reductant. High molybdenum and chromium content make it can resist the chloride corrosion, and tungsten make it corrosion resistance better.C276 is one of a few material that can resist the corrosion of most chlorine, hypochlorite and chlorine dioxide, this alloy have prominent corrosion resistance to high concentration chlorate( iron chloride and copper chloride).

Hastelloy C-276 Application field:
C276 is widely used in the chemical field and petrifaction field, such as the element of chloride organic and catalyze system.This material especially suit for high temperature environment, impure inorganic acid and organic acid (such as formic acid and acetic acid), sea-water corrosion environment.

Hastelloy C-276 Other application field:
1. The digester and bleacher in the use of paper pulp and paper making industry.
2.Absorption tower, re-heater and fan in the FGD system.
3. The equipment and parts in the use of acidic gas environments.
4. Acetic acid and anhydride reaction generator
5. Sulfur acid cooling
6.MDI
7.Manufacture and processing of impure phosphoric acid.

FAQ

Question: Are you a trading company or manufacturer?
Answer: We're manufacturer.

Question2: Could you help to design the product?
Answer: Yes, we have excellent R&D team, OEM/ODM orders are all welcome.
Question: Could you supply samples?
Answer: Yes, wecould supply samples according to your requirement.

Question: could we visit your factory?
Answer: Sure, factory visit is warmly welcome.
