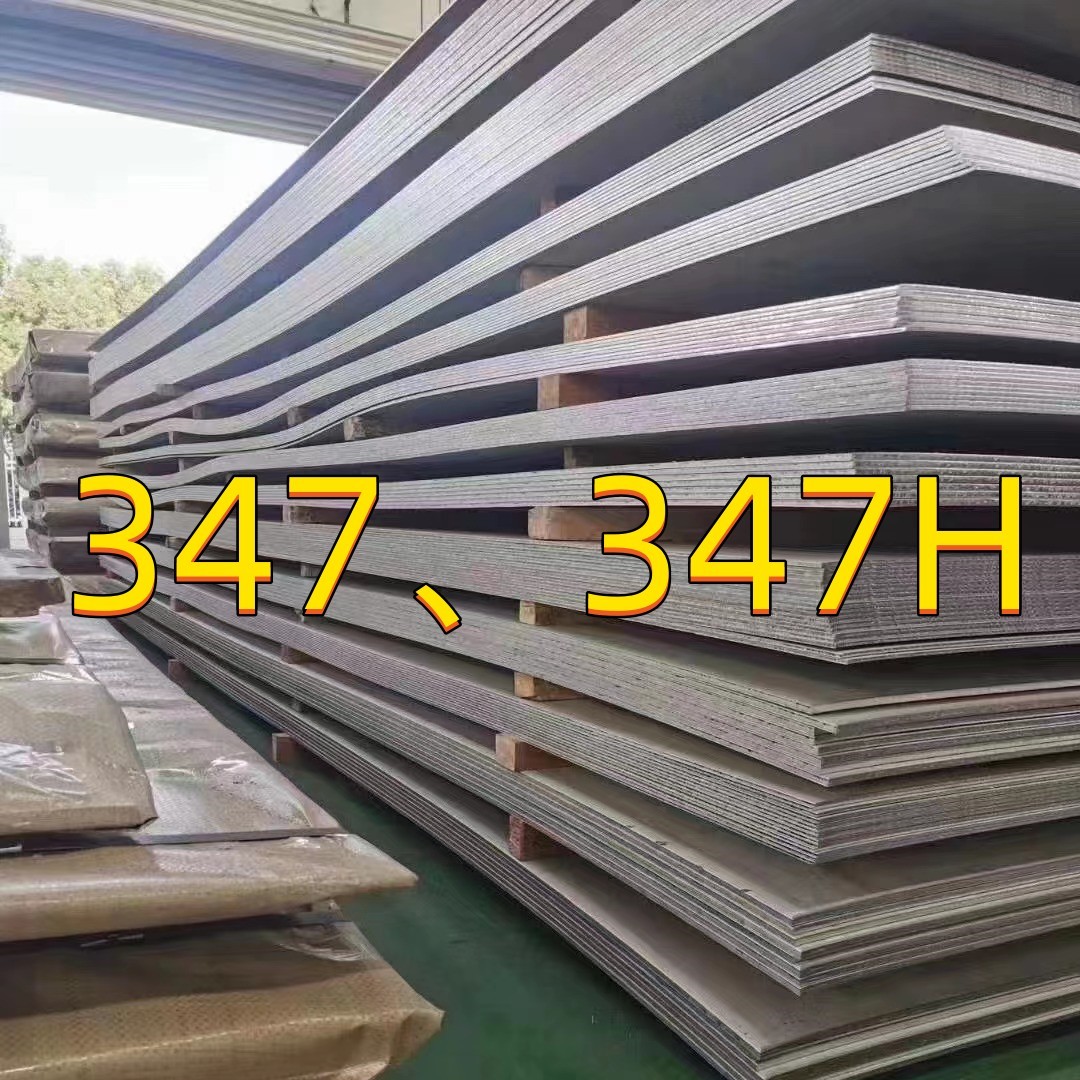

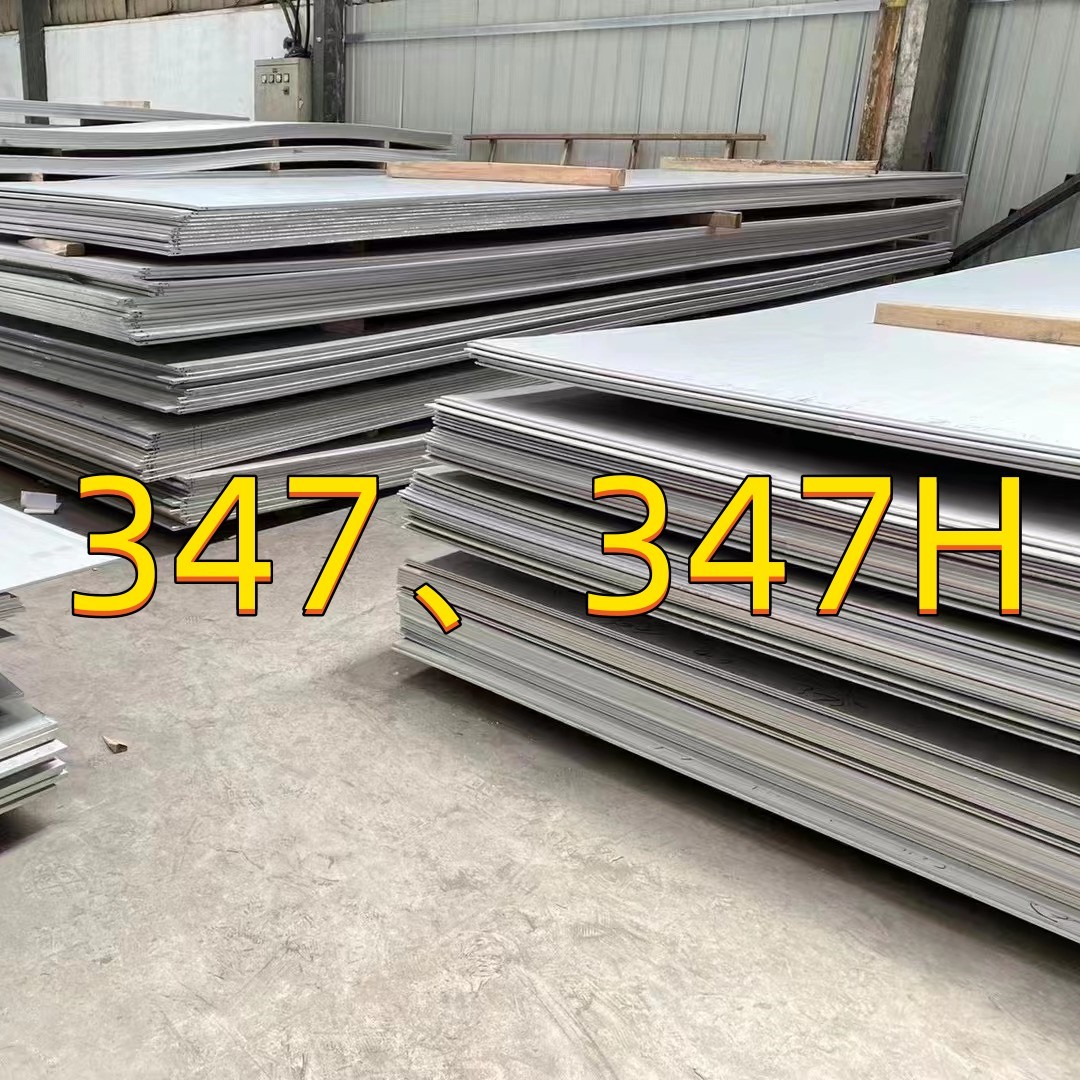

Cold Rolled 347/347H Stainless Steel Sheet 1500*3000mm 1000*2000mm
1, structural steel: construction and engineering structural steel referred to as construction steel, used in buildings, Bridges, ships, boilers or other projects to make metal structural parts of steel.
2, tool steel: generally used in the manufacture of various tools, such as carbon tool steel, alloy tool steel, high-speed tool steel, etc.
3, special steel: steel with special properties, such as rust acid-resistant steel, heat resistant steel, magnetic steel, etc.
4, professional steel: refers to the industrial sector of professional use of steel, such as automotive steel, agricultural machinery steel, aviation steel, electrical steel, etc.
GENERAL PROPERTIES
Alloy 347 is a stabilized, austenitic, chromium steel containing columbium which allows for the elimination of carbide precipitation, and, consequently, intergranualr corrosion. Alloy 347 is stabilized by the additions of chromium and tantalum and offers higher creep and stress rupture properties than alloy 304 and 304L which may also be used for exposures where sensitization and intergranualr corrosion are of concern. The addition of columbium also allows Alloy 347 to have excellent corrosion resistance, even superior to that of alloy 321. 347H is the higher carbon composition form of Alloy 347 and demonstrates improved high temperature and creep properties.
Specifications: UNS S34700 / S34709
APPLICATIONS:
Alloy 347 is frequently used for the fabrication of equipment, which must be placed in service under severe corrosive conditions, and is also common to the petroleum refining industries. Applications that consistently used Alloy 347 include:
- High temperature chemical processes
- Heat exchanger tubes
- High temperature steam service
- High pressure steam pipes
- Radiant superheaters
- Boiler tubes
- Heavy duty exhaust systems
- General refinery piping
STANDARDS:
- ASTM/ASME: UNS S34700 / S34709
- EURONORM: FeMi35Cr20Cu4Mo2
- DIN: 2.4660
| Chemical Properties of Frequently-used Stainless Steel Material Grade |
| UNS | ASTM | EN | JIS | C% | Mn% | P% | S% | Si% | Cr% | Ni% | Mo% |
| S20100 | 201 | 1.4372 | SUS201 | ≤0.15 | 5.5-7.5 | ≤0.06 | ≤0.03 | ≤1.00 | 16.0-18.0 | 3.5-5.5 | - |
| S20200 | 202 | 1.4373 | SUS202 | ≤0.15 | 7.5-10.0 | ≤0.06 | ≤0.03 | ≤1.00 | 17.0-19.0 | 4.0-6.0 | - |
| S30100 | 301 | 1.4319 | SUS301 | ≤0.15 | ≤2.00 | ≤0.045 | ≤0.03 | ≤1.00 | 16.0-18.0 | 6.0-8.0 | - |
| S30400 | 304 | 1.4301 | SUS304 | ≤0.08 | ≤2.00 | ≤0.045 | ≤0.03 | ≤0.75 | 18.0-20.0 | 8.0-10.5 | - |
| S30403 | 304L | 1.4306 | SUS304L | ≤0.03 | ≤2.00 | ≤0.045 | ≤0.03 | ≤0.75 | 18.0-20.0 | 8.0-12.0 | - |
| S30908 | 309S | 1.4833 | SUS309S | ≤0.08 | ≤2.00 | ≤0.045 | ≤0.03 | ≤0.75 | 22.0-24.0 | 12.0-15.0 | - |
| S31008 | 310S | 1.4845 | SUS310S | ≤0.08 | ≤2.00 | ≤0.045 | ≤0.03 | ≤1.50 | 24.0-26.0 | 19.0-22.0 | - |
| S31600 | 316 | 1.4401 | SUS316 | ≤0.08 | ≤2.00 | ≤0.045 | ≤0.03 | ≤0.75 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 |
| S31603 | 316L | 1.4404 | SUS316L | ≤0.03 | ≤2.00 | ≤0.045 | ≤0.03 | ≤0.75 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 |
| S31703 | 317L | 1.4438 | SUS317L | ≤0.03 | ≤2.00 | ≤0.045 | ≤0.03 | ≤0.75 | 18.0-20.0 | 11.0-15.0 | 3.0-4.0 |
| S32100 | 321 | 1.4541 | SUS321 | ≤0.08 | ≤2.00 | ≤0.045 | ≤0.03 | ≤0.75 | 17.0-19.0 | 9.0-12.0 | - |
| S34700 | 347 | 1.4550 | SUS347 | ≤0.08 | ≤2.00 | ≤0.045 | ≤0.03 | ≤0.75 | 17.0-19.0 | 9.0-13.0 | - |
| S40500 | 405 | 1.4002 | SUS405 | ≤0.08 | ≤1.00 | ≤0.04 | ≤0.03 | ≤1.00 | 11.5-14.5 | ≤0.60 | - |
| S40900 | 409 | 1.4512 | SUS409 | ≤0.08 | ≤1.00 | ≤0.045 | ≤0.03 | ≤1.00 | 10.5-11.75 | ≤0.50 | - |
| S43000 | 430 | 1.4016 | SUS430 | ≤0.12 | ≤1.00 | ≤0.040 | ≤0.03 | ≤0.75 | 16.0-18.0 | ≤0.60 | - |
| S43400 | 434 | 1.4113 | SUS434 | ≤0.12 | ≤1.00 | ≤0.040 | ≤0.03 | ≤1.00 | 16.0-18.0 | - | - |
| S44400 | 444 | 1.4521 | SUS444L | ≤0.025 | ≤1.00 | ≤0.045 | ≤0.03 | ≤1.00 | 17.5-19.5 | ≤1.00 | - |
| S40300 | 403 | - | SUS403 | ≤0.15 | 5.5-7.5 | ≤0.04 | ≤0.03 | ≤0.50 | 11.5-13.0 | ≤0.60 | - |
| S410000 | 410 | 1.40006 | SUS410 | ≤0.15 | ≤1.00 | ≤0.035 | ≤0.03 | ≤1.00 | 11.5-13.5 | ≤0.60 | ≤1.00 |
| S42000 | 420 | 1.4021 | SUS420J1 | 0.16~0.25 | ≤1.00 | ≤0.04 | ≤0.03 | ≤1.00 | 12.0-14.0 | ≤0.75 | ≤1.00 |
| S440A | 440A | 1.4028 | SUS440A | 0.60~0.75 | ≤1.00 | ≤0.04 | ≤0.03 | ≤1.00 | 16.0-18.0 | - | ≤0.75 |
| S32750 | SAD2507 | 1.4410 | | ≤0.03 | ≤1.2 | ≤0.035 | ≤0.02 | ≤0.80 | 24.0-26.0 | 6.0-8.0 | 3.0-5.0 |
| S31803 | SAF2205 | 1.4462 | | ≤0.03 | ≤2.0 | ≤0.03 | ≤0.02 | ≤1.00 | 21.0-23.0 | 4.0-6.5 | 2.5-3.5 |
| N08904 | 904L | 1.4539 | | ≤0.0.3 | ≤2.0 | ≤0.035 | ≤0.03 | ≤1.00 | 18.0-20.0 | 23.0-25.0 | 3.0-4.0 |
